Serving Up The Universe On A Plate

July 14, 2021

They may not look like much - just metal disks 80 centimeters (30 inches) across with some etched markings and hundreds of small holes - but round aluminum “plates” like this one from the Sloan Digital Sky Survey (SDSS) have been vital to mapping our universe for more than 20 years.

The light passing through these plates has helped us search for answers to an enormous range of questions that we want to ask about our Universe, from nearby stars and planetary systems to distant galaxies and giant black holes,” says Gail Zasowski, the scientific spokesperson for SDSS-V.

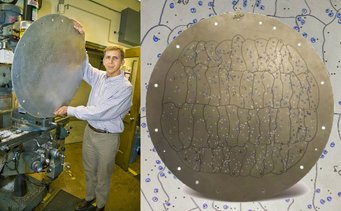

Left: David Schlegel, a key developer of SDSS’s spectroscopy program and the Principal Investigator of the SDSS-III BOSS survey, holds up a newly drilled plate.  Right: A plate from the SDSS-III BOSS survey, against a zoomed-in background of itself, showing the holes and the annotations used to help plug in the optical fibers.

The plates enabled the SDSS to use one of the most powerful techniques in astrophysics: splitting the light from an object up into the rainbow of its constituent colors to create a graph called a “spectrum,” which shows how much light of different energies the object emits.  Studying the spectrum of a galaxy can tell us details like how far away it is, how long ago its stars formed, and even how those stars orbit the supermassive black hole at the galaxy's center. The spectrum of the gas falling into that black hole can help us calculate how big the black hole is and how quickly it is growing. For an individual star, a spectrum can tell us its temperature, the chemical elements of which it is made, and how quickly it is moving towards or away from us. Multiple spectra of the same star over time can even be used to detect the presence of orbiting exoplanets or faint companions.

Astronomers have studied spectra of objects in the sky for centuries, but over time a problem appeared. Traditionally, astronomers relied on tiny slits in metal sheets to pass the light from single - or at most, a few - stars or galaxies into one spectrograph (a device that measures a spectrum), often a laborious process. As sky surveys got bigger and needed to collect spectra for more and more stars and galaxies, it became impractical to wait for spectrographs to collect all the data using these traditional methods. A new approach was needed.

The solution came at the end of the 1990s, when astronomers and engineers from the SDSS began to drill hundreds of holes in large aluminum plates, each hole positioned to line up with a star or galaxy towards a particular patch of the sky (watch a video of the drilling process here). When the plate was set at the back of the telescope, an optical fiber, carefully plugged by hand into each hole (watch a video here), carried the light from the star or the galaxy into a spectrograph. This new system allowed several hundred spectra to be collected at the same time, dramatically increasing the speed at which objects in the sky could be measured.

In fact, SDSS-IV Director Mike Blanton explains that “the very first batch of data we used in early 2000 was almost as big as any of the previous redshift surveys ever done, and that was just from the first month or two of observations!

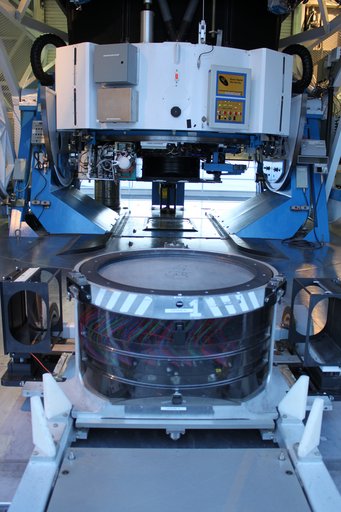

The final plate of the SDSS plate program sits at the base of the Sloan Telescope at the Apache Point Observatory in New Mexico, USA. The colored fibers visible below the plate have been plugged into their holes and will carry the light to the waiting instruments.

Since those early measurements, more than twelve thousand plates have been drilled, hand-plugged, and observed. That’s a lot of metal -- if all of these plates were piled together, their combined weight would equal that of twelve African bull elephants - or, for astronomers, a cube of white dwarf star material just under 4 centimeters (one and a half inches) on each side. All those plates would contain enough metal to make 4.3 million soda cans. All of these plates were drilled by engineers at the University of Washington’s machine shop, and each hole in each plate was plugged in by hand by staff at one of the SDSS’s telescopes in New Mexico and Chile.

The appearance of the plates has evolved over time, as the SDSS started new surveys, built new spectrographs, and even started using different telescopes. Many of the plates from recent years have more than one thousand holes each, or have holes for fibers from multiple spectrographs at the same time, or have holes that can accommodate bundles of dozens of optical fibers packed together. All told, more than 5.3 million individual holes have been drilled, each to within a tolerance of 10 micrometers (4 ten-thousandths of an inch). If you had to count all of these holes one-by-one, it would take you more than 60 straight days with no breaks.

What have we learned from the photons that passed through all those holes? They comprise the spectra of over four million stars, galaxies, and quasars. In turn, these spectra have been used to measure how old the universe is, how much dark matter is in it, how its expansion is accelerating, and how its billions of galaxies formed and evolved over time. As SDSS continued observing over the years, it increasingly focused on the detailed history of our own Milky Way and nearby galaxies, and on how stars are born, evolve, die, and create the elements of which we ourselves are made. You can see a list of all the SDSS press releases here, here, and here, with that last link dating back to 1998.

One of the best parts of all this information is that it is available any time to anyone, anywhere. “Every single spectrum observed by the SDSS is made available online, not just for astronomers, but for the whole world to study,” says Anne-Marie Weijmans, who oversees the effort to document and release these massive quantities of data. The enormous number of discoveries made using SDSS data have involved researchers all over the world, often asking questions or using the data in ways that were not even envisioned when the survey was designed.

Photo of an art exhibit by SDSS Artist-in-Residence Tim Fitzpatrick in St Andrews, Scotland, on 7 November 2015. Volunteers and visitors examine a backlit SDSS plate on the left and art inspired by astronomical spectra on the right.

In addition to the vast scientific knowledge and online data troves enabled by this system, SDSS plates have provided a way for countless schoolchildren and members of the public to interact with real astronomical hardware and data. “To date, the SDSS’s Plates for Education program has distributed several hundred plates -- all of which have been used to observe the sky -- to schools, museums, and other educational institutions around the world”, explains Romina Ahumada, who leads these SDSS educational efforts in Chile. The Plates for Education program has developed materials to help everyone learn about the celestial objects observed with the very plate in their hands, and to help educators incorporate the plates into their curricula to teach numerous astrophysical concepts. (Click here for a video of a virtual workshop run for teachers in late 2020.) Artists around the world have also explored numerous aspects of the plates as windows to the universe, including Jian Yang in Beijing (article has both English and Mandarin translation), Josiah McElheny in New York City (as highlighted here and in The NY Times), and SDSS’s own Artist-in-Residence Tim Fitzpatrick.

Now, after over two decades of using these plates to support its data collection (literally and metaphorically), the Sloan Digital Sky Survey is moving to a new era -- one in which tiny robots will position each optical fiber to match the location of a star, galaxy, supermassive black hole, or other target. This is the perfect time to look back at the monumental scientific contribution of the plates, as the team plans for the next major developments that will be enabled by the new, even faster system.

As Juna Kollmeier, the Director of the brand-new fifth phase of the SDSS project (SDSS-V), says, “The plates have been amazing. In graduate school, I worked with the first ones, and it’s humbling to think of all we have learned and all we still have to discover.

Although observations with the SDSS plates have now ended, the survey looks ahead to an even brighter future. SDSS-V observations have already begun, using a sophisticated system in which robots repeatedly arrange and rearrange the optical fibers, allowing far more objects to be observed in far shorter times. Kollmeier continues, “With SDSS-V and its robots, we will now be able to fully probe the entire sky with spectra, repeatedly in time, and make that data available to the world. How does the Universe change over days, weeks, or even years? We’ve had key snapshots of the universe -- now it’s time to make the movie.

Text/Credits: SDSS-Consortium

Original press release with further images and video material

German version of the press release at MPIA

Participation of MPIA

If the SDSS plates were laid end to end, they would stretch from the market square in Heidelberg to the center of Schwetzingen.

Since the early 2000s, the Sloan Digital Sky Survey (SDSS) had a lasting impact on many fields of astronomy. Based on deep direct images covering about one-third of the entire sky and spectroscopy of several million objects, it has been possible, among other things, to create three-dimensional maps of large regions of the universe.

"SDSS has not only revolutionized our understanding of galaxy evolution, but has also provided deep insights into the structure and history of our own Milky Way galaxy." says Hans-Walter Rix, director at MPIA and SDSS-V Project Scientist. "In the global consortium of SDSS partner institutes that has grown over the last decades, MPIA is still proud to have been the first European partner."
